Adaptor PCB for 2-terminal PCBs to use a 4-terminal DNM capacitor

Adaptor PCB for 2-terminal PCBs to use a 4-terminal DNM capacitor

Price: 30.00 (Including VAT at 20%)

Quantity:

This adaptor PCB enables easier installation of 4TTN T Network capacitors onto a printed circuit board designed for two terminal capacitors.

The 4 terminal capacitors are powered from a bridge rectifier circuit (see attached illustration linked below) and near the centre of the adaptor PCB a group of pads have rectangular thru-plated holes dimensioned to accept soldered terminals (supplied with the adaptor PCB) on either 10mm or 23mm spacing.
The terminals protrude downwards to fit into the plus/minus connections on the 2 terminal pcb. These two connections
supply the inputs to the 4TTN capacitor.

The adaptor PCB outputs from the 4TTN to the circuit are hand-wired down to the main PCB. Only the output tracks from the original 2-terminal capacitor need to be cut so that the output terminals on the adaptor PCB power the circuit.

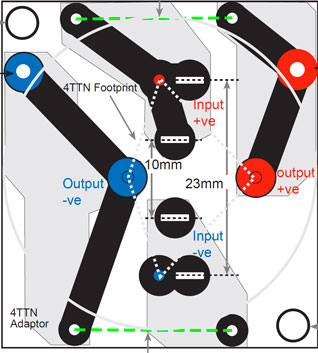

The two wire links (shown in green) are used only on the grounded side of the input/output connections -- see the attached bridge rectifier illustration : Bridge rectifier circuits to use DNM 4-terminal capacitors


Full diagram including wiring needed

NEW 50% OFF SALE! - Guided Current 4TTN capacitor - 4,700 F 63 Volt

NEW 50% OFF SALE! - Guided Current 4TTN capacitor - 4,700 µF 63 Volt

Price: 9.00 (Including VAT at 20%)

Quantity:


NEW - Four Terminal Guided Current (T-Network) capacitor in 4700 µF 63 Volt value. Dedicated 4 pin mounting. Length 43mm, Diameter 40mm.
Ideal for very high quality low level amplifiers, pre-amps or CD player amps.
Also suitable for switch mode power supplies needing ultra-high performance filtering to above 1MHz.

Ask DNM Design for pricing above 10 capacitors using the Contact Us button above.


30% OFF SALE! - Guided Current 4TTN capacitor - 10,000 F 63 Volt

30% OFF SALE! - Guided Current 4TTN capacitor - 10,000 µF 63 Volt

Price: 21.00 (Including VAT at 20%)

Quantity:

Four Terminal Guided Current (T-Network) capacitor in 10,000 µF 63 Volt value. Dedicated 4 pin mounting. Length 58mm, Diameter 40mm.

Ask DNM Design for pricing above 10 capacitors using the Contact Us button above.



Data sheet

Guided Current 4TTN capacitor - 10,000 F 80 Volt

Guided Current 4TTN capacitor - 10,000 µF 80 Volt

Price: 31.00 (Including VAT at 20%)

Quantity:

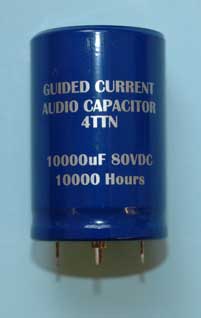

Extremely high performance Guided Current 4TTN (T-Network) capacitor in 10,000 µF 80 Volt value.
Dedicated 4 pin mounting.
Length 63mm. Diameter 40mm

Ask DNM Design for pricing above 10 capacitors using the Contact Us button above - or for ordering the 63V and 80V versions of this capacitor.


30% OFF SALE! - NEW shorter Guided Current 2T capacitors - 10,000 F 63 Volt

30% OFF SALE! - NEW shorter Guided Current 2T capacitors - 10,000 µF 63 Volt

Price: 10.50 (Including VAT at 20%)

Quantity:


NEW Guided Current 2T (Slit foil) capacitor in 10,000 µF 63 Volt value, shorter and lower-priced than the existing 80V version. Mounting is two pin snap-in. Length 56mm (reduced from 63mm), Diameter 35mm.

Ask DNM Design for pricing above 10 capacitors using the Contact Us button above.

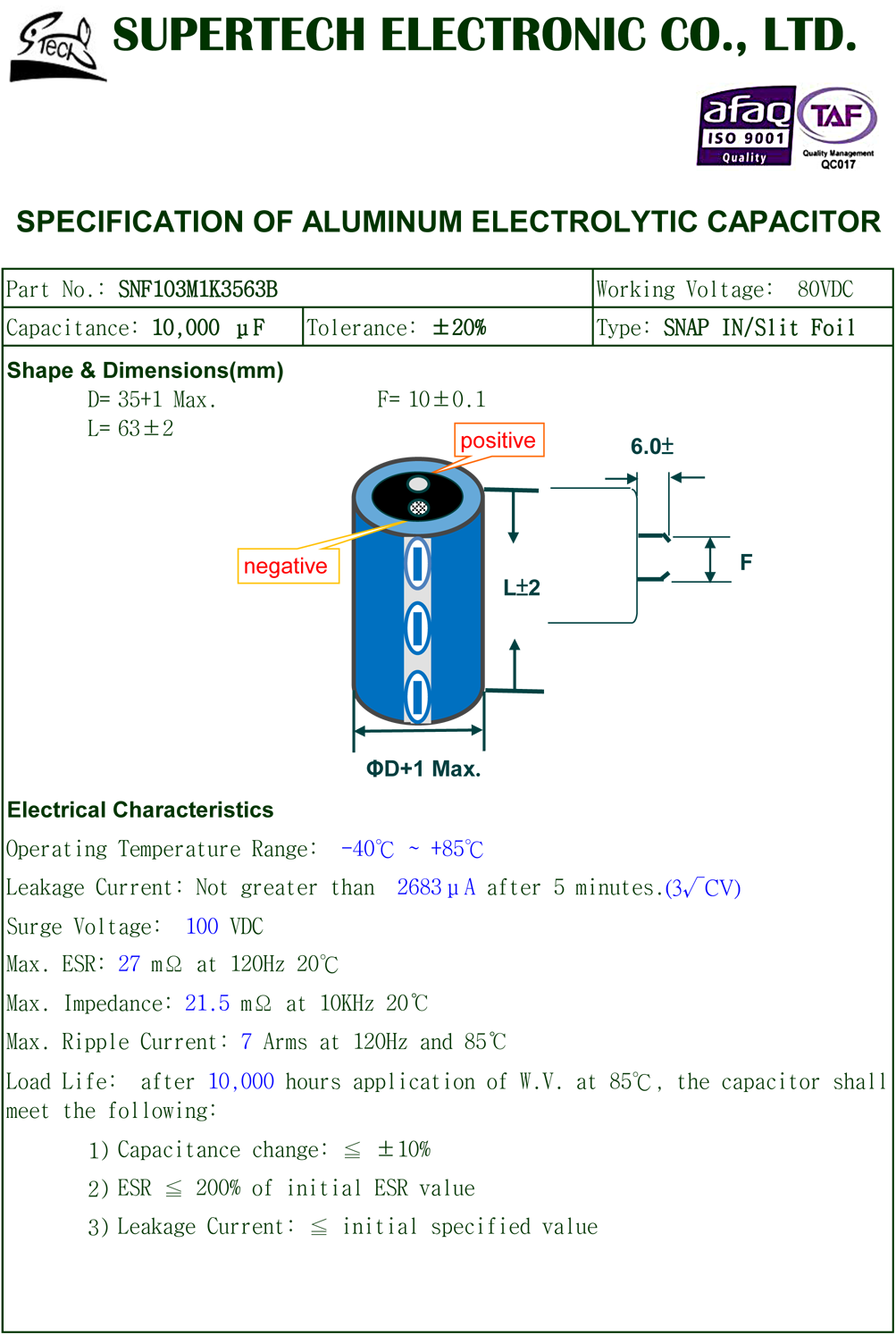

Data sheet

30% OFF SALE! - Guided Current 2T capacitors - 10,000 F 80 Volt : now available again

30% OFF SALE! - Guided Current 2T capacitors - 10,000 µF 80 Volt : now available again

Price: 12.60 (Including VAT at 20%)

Quantity:


Guided Current 2T (Slit foil) capacitor in 10,000 µF 80 Volt value. Mounting is two pin snap-in. Length 63mm, Diameter 35mm.

Ask DNM Design for pricing above 10 capacitors using the Contact Us button above.


Data sheet
